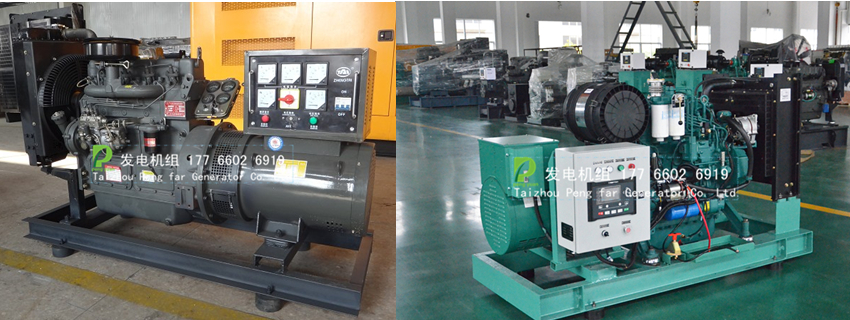

Product name:Weichai Power Diesel Generator
Brief introduction of Weichai Power unit:
Weichai diesel generator is a diesel generator assembly configuration brand our selection of large state enterprises Weifang Diesel Engine Factory production and. Diesel engine using Ricardo R series engine with large enterprises Weifang Diesel Engine Factory and a British joint venture, R4105, R6105, 20KW-150KW power range, quality and stability of Weichai diesel generator, cheap. Weichai series diesel engine is a new generation of models of Weichai 1990s design and development, the design of the absorption of foreign advanced diesel engine design, Weifang Diesel generator unit adopts advanced production technology, at the same time because of the pressure in the cooling technology, the engine power increased by 25% of the fuel consumption is reduced by 5 - 6%. Its power, economy and reliability are in the leading position in the similar diesel engine products, and it is the first choice in the domestic machine of the middle range power range.
The characteristics of the Weichai Power unit:
Unit performance is stable and reliable
Low fuel consumption, low emission and low noise
The diesel generator set adopts rotary diesel oil, oil filter and dry air filter
Unit wear-resistant and durable, compact structure, easy to operate
潍柴系列发电机组技术参数:
机组型号 | 输出功率(KW) | 电流(A) | 柴油机型号 | 缸数 | 缸径*行程(mm) | 排气量 (L) | 燃油消耗率 g/KW.h | 机组尺寸mm L×W×H | 机组重量 kg | |
KW | KVA | |||||||||
普通潍柴 | ||||||||||
PYW-15GF | 15 | 18.7 | 27 | K4100D | 4 | 100*115 | 3.6 | 236 | 1600×700×1120 | 620 |
PYW-20GF | 20 | 25 | 36 | K4100D | 4 | 100*115 | 3.6 | 236 | 1600×700×1120 | 630 |
PYW-24GF | 24 | 30 | 43.2 | K4100D | 4 | 100*115 | 3.6 | 236 | 1650×700×1120 | 640 |
PYW-30GF | 30 | 37.5 | 54 | K4100D | 4 | 100*115 | 3.6 | 236 | 1650×700×1120 | 650 |
PYW-40GF | 40 | 50 | 72 | K4100ZD | 4 | 100*115 | 3.6 | 238 | 1800×720×1200 | 750 |
PYW-50GF | 50 | 62.5 | 90 | R4105ZD | 4 | 105*115 | 3.6 | 238 | 1850×760×1300 | 850 |
PYW-75GF | 75 | 93.75 | 135 | R6105ZD | 6 | 105*115 | 3.6 | 238 | 2250×800×1500 | 1300 |
PYW-100GF | 100 | 125 | 180 | R6105AZLD | 6 | 105*115 | 3.6 | 238 | 2300×800×1500 | 1500 |
PYW-120GF | 120 | 150 | 216 | R6105IZLD | 6 | 105*115 | 3.6 | 238 | 2400×800×1500 | 1600 |
PYW-150GF | 150 | 187.5 | 270 | 6113AZLD | 6 | 113*115 | 3.6 | 238 | 2550×880×1500 | 1700 |
PYW-180GF | 180 | 225 | 324 | 6120IZLD | 6 | 120*115 | 3.6 | 226 | 2900×1000×1800 | 2500 |
PYW-200GF | 200 | 250 | 360 | 6120IZLD | 6 | 120*115 | 3.6 | 226 | 2900×1000×1800 | 2500 |
潍柴华丰动力 | ||||||||||
PYW-20GF | 20 | 25 | 36 | 495D10-1 | 4 | 95*115 | 3.26 | 231 | 1560×630×1070 | 640 |
PYW-24GF | 24 | 30 | 43 | 495D10-1 | 4 | 95*115 | 3.26 | 231 | 1600×700×1060 | 670 |
PYW-30GF | 30 | 37.5 | 54 | K4102D3 | 4 | 102*115 | 3.76 | 218 | 1700×630×1160 | 680 |
PYW-40GF | 40 | 50 | 72 | K4100ZD1-1 | 4 | 100*115 | 3.26 | 231 | 1720×760×1300 | 800 |
PYW-50GF | 50 | 62.5 | 90 | PHF4056ZD1 | 4 | 105*125 | 4.33 | 226 | 1850×750×1200 | 910 |
PYW-64GF | 64 | 80 | 115 | PHF6084ZD1 | 6 | 105*125 | 6.49 | 231 | 1850×830×1350 | 1100 |
PYW-75GF | 75 | 93.75 | 135 | PHF6084ZD1 | 6 | 105*125 | 6.49 | 231 | 2200×800×1450 | 1200 |
PYW-90GF | 90 | 112.5 | 162 | PHF6100ZLD1 | 6 | 105*125 | 6.49 | 231 | 2300×800×1450 | 1250 |
PYW-100GF | 100 | 125 | 180 | PHF6110ZLD1 | 6 | 105*125 | 6.75 | 217 | 2380×800×1520 | 1300 |
PYW-120GF | 120 | 150 | 216 | PHF6110ZLD1 | 6 | 105*125 | 6.75 | 217 | 2400×800×1500 | 1400 |
PYW-150GF | 150 | 187.5 | 270 | R6113ZLD1-1 | 6 | 113*125 | 7.518 | 208 | 2410×850×1600 | 1570 |
PYW-250GF | 250 | 312.5 | 450 | PHF6308ZLD | 6 | 135*150 | 12.88 | 210 | 2500×850×1600 | 1570 |
